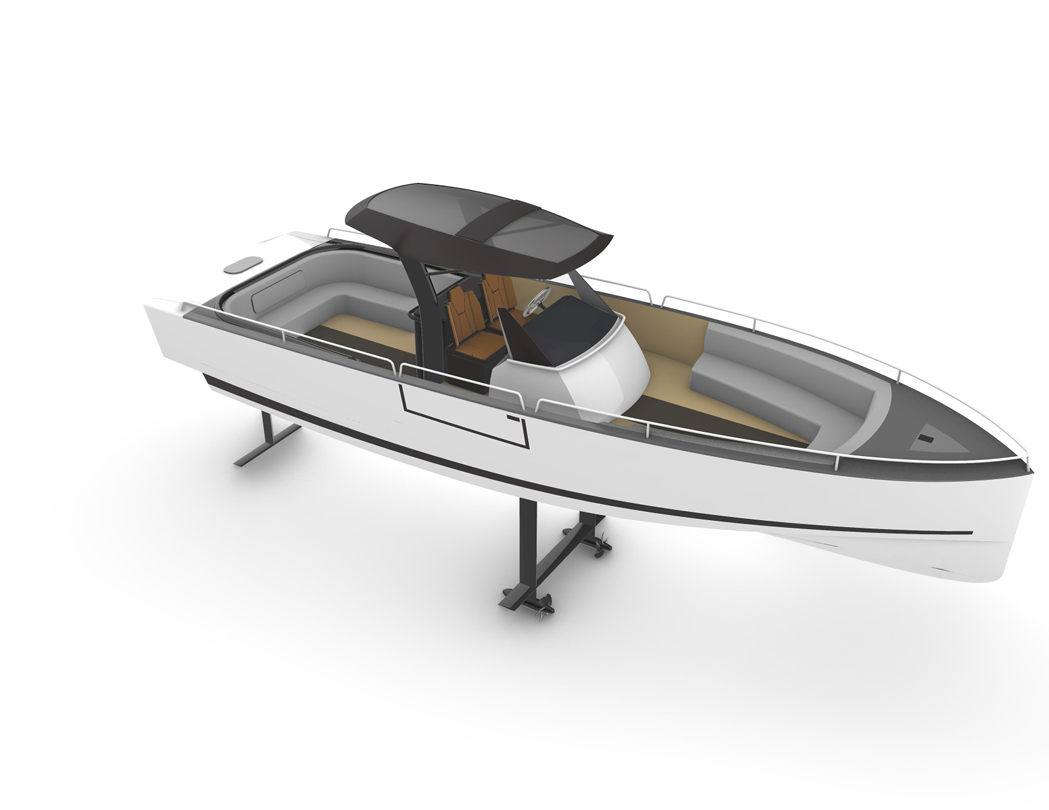

8.5m Carbon Fiber E-Foil Boat
The 8.5m Carbon Fiber E-Foil Boat brings together cutting-edge carbon fiber design, powerful electric propulsion, and hydrofoil innovation. The result is zero-emission cruising, remarkable speed, and a truly next-generation water experience. Seastel Canada is responsible for the marketing and sales of the 8.5m Carbon Fiber E-Foil Boat in the North American market.
Key Features
- Lightweight and high-strength carbon fiber hull
- Hydrofoil design enables high-speed performance and a smooth, stable ride
- Electric propulsion delivers a zero-emission experience
- The flight control system ensures intuitive operation and optimal safety
Applications
Private yachting & luxury leisure cruising
Water sports & high-speed racing experiences
Zero-emission marine transportation
Premium resorts & yacht clubs
Specifications of 8.5m Carbon Fiber E-Foil Boat
Main Data
Ship Type:
Materials:
Design Operation Area:
Electric hydrofoil boat
Carbon fiber sandwich
Coastal
Main Dimension
LOA:
Lpp:
Breadth:
Depth/Design Draft:
Light Ship/Full Load:
8.66 m
7.77 m
2.52 m
1.40 m / 1.84 m
2.35 ton / 2.80 ton
Performance
Design Speed:
Max Speed:
Range:
22 knots
25 knots
32 nmile @22 knots
Passenger
Passenger
(Include crew):
6 pax
Pro
Propulsion System:

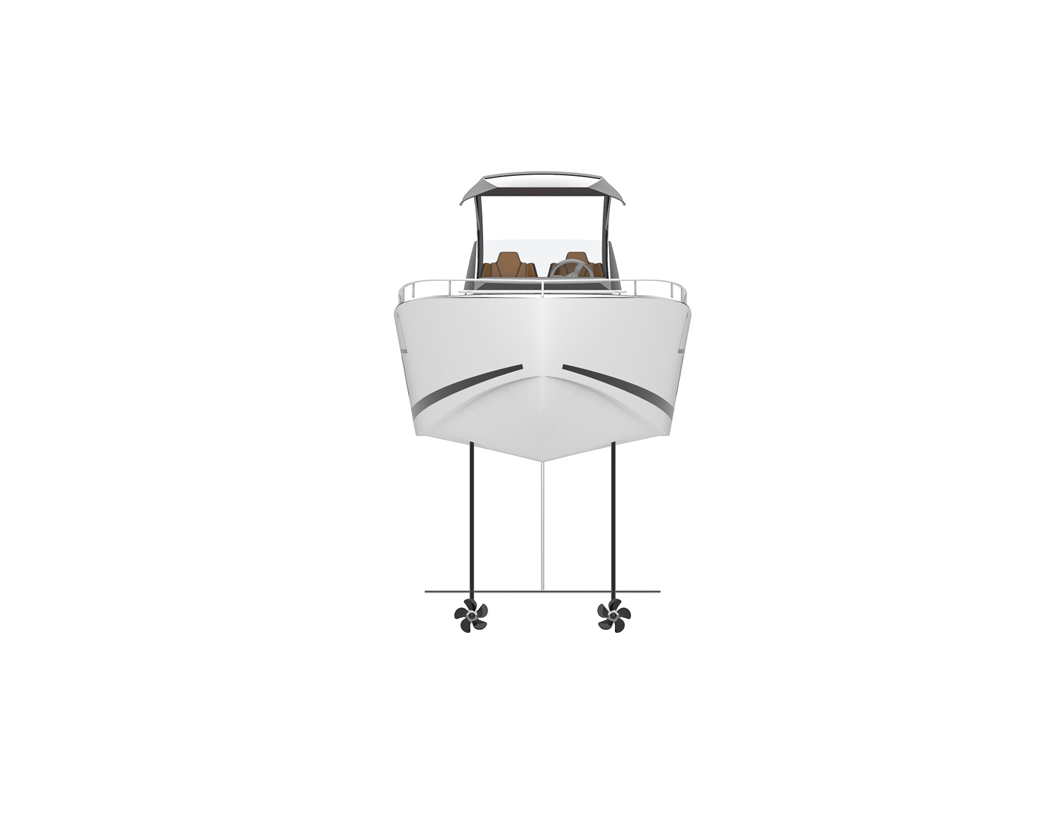

2×30kw pod (integrated motor propeller), installed beneath the front hydrofoil.
Foil:
Equipped with one hydrofoil at the front and one at the aft, and the ship’s attitude is controlled by flaps.
Rudder:
A steering gear system is installed on the bridge. The flap rudder is mounted on the rear hydrofoil strut and the rudder gear is electrically driven with the function of servo control.
Battery:
65.32 kWh lithium battery is equipped with an electric heating film and cooled by water circulation. The coolant is a mixture of 50% ethylene glycol and 50% pure water.
